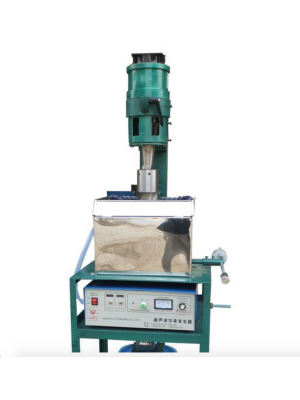

Portable Ultrasonic Drilling Machine

Ultrasonic Drilling Machine uses a method of brittle destruction by the collision of abrasives which are forced against the workpiece by an ultrasonically vibrated tool assisted by an appropriate clamping force. The tool vibration can be of amplitude approx. 40-80 microns with frequencies of 25 kHz, sufficient to perform effective machining. Abrasives may be carborundum, boron carbide or diamond powder depending upon each work. Rougher grits provide quicker chipping but offer rougher finish, Abrasives are usually used in slurry (mixed with water).
$345.00
Availability: In stock
SKU
JTLEVS001

Features:

  • Suitable for precise drilling of any hard and brittle gemstone;
  • Not only round but the unsystematic machine can be done as the Ultrasonic drilling machining is longitudinally processed.
  • High accuracy and fine finished are obtained depending upon the tool accuracy and grit size.
  • Simple in operation even a beginner can operate the machine with ease.
  • 4mm thickness can be drilled in 10-15 seconds on an average.
  • Very low operative cost. Less than 4% weight loss in drilling on an average. Ultrasonic Drilling Machines have been developed in various models.

Specifications:

Ultrasonic Unit: 25 KHz 150 W ultra Tuning

Transducers: Electrostrictive PZT

Power Required: AC 220V, 50Hz.Approx. 250VA

Max. Drilling thickness: 10 mm
