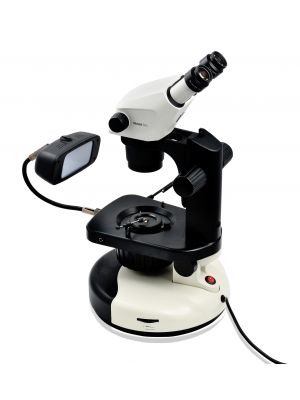

Carl Zeiss Stemi 305 Trinocular Microscope

Carl Zeiss Stemi 305 Trinocular Microscope

SACHI Professional Stereo Zoom Binocular Microscope

SACHI Professional Stereo Zoom Binocular Microscope

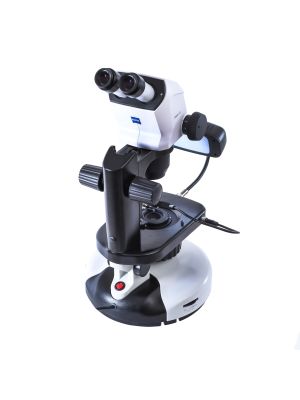

Carl Zeiss Stemi 508 Trinocular Microscope

Carl Zeiss STEMI 508 Trinocular Microscope

The ZEISS trinocular optical system comes with 10x eyepieces for 6.5x - 50x magnification and a wide viewing field for objects up to 36mm. A further set of 16x eyepieces for a unique ZOOM magnification range in Gemmology of 10x – 80x is also included. The Camera is not Include.

Outstanding Optics Design:

  • Apochromatic corrected ZOOM optics of ZEISS.
  • Sharp, distortion-free 3D image over the whole visual field.
  • Mechanical corrected ZOOM curve for largest ZOOM range 8 : 1.
  • Sharp 3D image in each ZOOM position.
  • Distortion-free 10x eyepieces with wide field of view 36 mm at 6.5x.
  • Distortion-free 16x eyepieces with wide field of view 25 mm at 10x.
  • Individual diopter correction at each eyepiece.
  • Eyepiece adjustment 55-75mm.
  • C-mount adapter 0.5x.
  • Working distance 92mm (3,6").
  • C-mount Adaptor to mount any DSL Camera



Specifications of the BASE:

  • Bright Field, dark field (LED) and LED fluorescent illumination and LED Point Source
  • Removable Iris Diaphragm: 2mm-41mm
  • 0-325 degrees rotatable base
  • Inclinable upto 38 degrees for better comfort and view
  • Magnetic Tweezers for better grip
  • Voltage: 100V to 240V





$6,300.00
Availability: In stock
SKU
JTGEMC004

The ZEISS trinocular optical system comes with 10x eyepieces for 6.5x-50x magnification and a wide viewing field for objects up to 36mm. A further set of 16x eyepieces for a unique ZOOM magnification range in Gemmology of 10x and 80x can be purchased separately

Outstanding Optics Design:

  • Apochromatic corrected ZOOM optics of ZEISS
  • Sharp, distortion-free 3D image over the whole visual field
  • Mechanical corrected ZOOM curve for largest ZOOM range: 8:1
  • A sharp 3D image in each ZOOM position
  • Distortion-free 10x eyepieces with a wide field of view: 36 mm at 6.5x
  • Distortion-free 16x eyepieces with a wide field of view: 25 mm at 10x
  • Individual diopter correction at each eyepiece
  • Eyepiece adjustment: 55-75mm
  • C-mount adapter: 0.5x
  • Working distance: 92mm (3,6")

Specifications of the BASE:

  • Bright Field, dark field (LED) and LED fluorescent illumination and LED Point Source
  • Removable Iris Diaphragm: 2mm-41mm
  • 0-325 degrees rotatable base
  • Inclinable up to 38 degrees for better comfort and view
  • Magnetic Tweezers for better grip
  • Voltage: 100V to 240V
